We have being design and manufacture the power supply cable reel
withadvanced technology and excellent performanceto meet with the requirement ofsupplying powerto the mobile electrical apparatus such as lifting electromagnet,
electric powered flat bed trailer,all kinds of cranes, electrical
powered grab buckets,etc.. According to the driving source ofspooling off the cable, this reel has two types available as:Spring Type & Electrical Powered Type.
Features:
Using spiral springs as power without electric energy consumption to keep reliable in operation
Using collector slip spring carbon brush bracket to transfer the electric energy steadily and continuously
Equipped reversible unit to avoid the reel counter-- rotating to breakthe springs
Power supply easily, safety and reliability in operation, correct
strs on the cables
Elastic power supply cable reel series JT is a kind of automatic cable reel driven by the spiral springs which adopted the imported international universal technology of
spiral power spring exploiting energy storage of itself. There are
three different types of product available for the customers: slip ring built-in type with compact and pretty contour; slip ring exterior installed type in convenience of service; over hanging type which can coil up much longer cables.
Benifits:
Easy installation and start of operation
Corrosion and water proof
Silver brush would prevent and reduce the noise by conductors
friction
Technical Data:
Overall Dimension
item
A
B
C
D1
D2
d
E
F
W
Weight(kg)
1
300
360
400
500
700
15
610
760
425
143
2
300
360
400
500
700
15
710
860
525
455
3
400
460
450
600
800
18
643
800
500
162
4
500
580
550
800
1000
18
835
990
690
236
Technical Data
Cable Model
Enabled Current
40m Series
item
50m Series
item
100m Series
item
Core No.*Cross Section
Continuously
1 min on/off
YC3*6+1*4
35
50
JTD50-40-4
1
JTD50-50-4
3
YC3*10+1*6
50
65
JTD65-40-4
1
JTD65-50-4
3
JTD65-100-4
4
YC3*16+1*6
66
85
JTD85-40-4
1
JTD85-50-4
3
YHD8*6
35
50
JTD50-40-8
2
Overall Dimension Drawing:

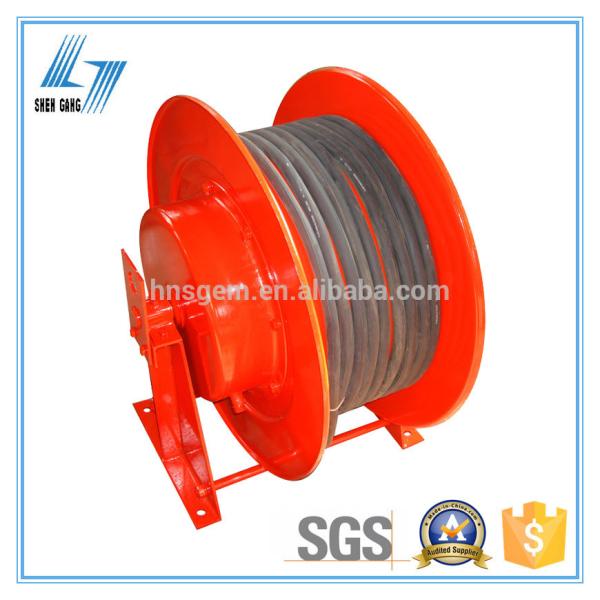

Physical Product Photo :
FAQ
In order to provide you with the best quotation at the shortest
time, we need you kindly inform below points to do model selection
:
1.Do you have special requirement about the power types?
spring type / motor powered/hysteresis?
2.What is the cable specification?
cable core number * cross section, coil length of cable, electric
current?
3. What kind of mobile equipment will the cable reel be applied with?
lifting magnet, crane or others?
4. What kind of installation patterns you prefer?
Vertical coiling or Horizontal coiling?
