Super Effective Iron Ore Magnetic Separator for Conveyor Belts
Series RCDD
Brief Introduction :
RCDD series is self-unloading type magnet separator in long-term system. It is added platform, iron removing belt and etc, which is
suspended over the belt conveyer. Through the conveyance of the
iron unloading belt, the separator will auto discard the iron magnetic articles which are absorbed by the
magnet into the iron collecting box. Thus removing the iron magnetic articles is gained. Which is the
one of the most common used types of separator.
Application:
Most being suitable for removing iron magnetic articles from thicker bed and granularity of the materials as ores, coal, hard
coke, limestone, spells, etc.
Features:
Improving and purifying non-magnetic materials; Recycling Iron
made of rare earth NdFeB
high gauss
energy saving
Technical Data:
International
Standard
model
Standard
Erection T(mm)
width of Conveyer belt(mm)
Rated voltage
(v)
Cold
state
Consumption
Power(kw)
Weight
(kg)
Overall dimension (mm)
Driving
Motor
capacity
(kw)
Corollary control
panel
A
B
C
D
E
F
RCDD-5
160
500
110
1.03
1074
2300
1330
1100
914
500
520
1.5
SSTM-1.5D1-D
RCDD-6
170
500
110
1.4
1160
2400
1400
1150
1068
650
520
1.5
RCDD-6
220
650
110
1.8
1330
2400
1250
1250
1120
650
555
1.5
SSTM-3.1D1-D
RCDD-8
250
800
110
2.6
1470
2750
1600
1360
1270
800
580
2.2
RCDD-8
250
800
110
2.9
2000
2750
1770
1465
1480
900
625
2.2
RCDD-10
260
1000
110
2.9
2000
2900
1770
1465
1480
900
625
2.2
SSTM6.2D1-D
RCDD-12
310
1200
220
4.2
2700
3200
2000
1590
1680
1000
625
4
RCDD-16
410
1600
220
8.2
6020
3800
2620
1850
1990
1400
725
4
SSTQ-12D1-D
Overall Dimension Drawing :

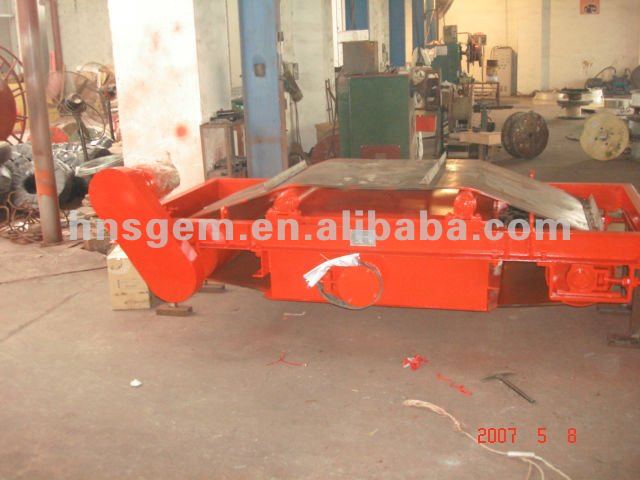

Physical Product Photo:
*Lifting Magnet Series:
--application for transporating steel scraps, steel plates,
billets,etc.
*Cable Reel Series:
--application for supply power to mobile electrical apparatus such
as lifting magnet, all kinds of crane,ect..
*Magnetic Seprator Series:
--application for separating the magnetic material from non-magneic
material in metallurgical ,mining,power,seaport,ceramic
industry,etc.
(fixed iron frame with five-plywoodboard packing to keep safety and
long-distance transportation)
