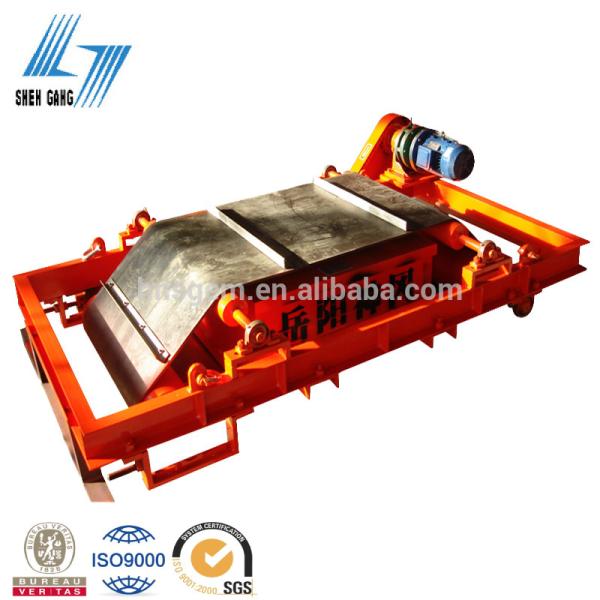

Auto-Cleaning Manganese Ore Magnetic Separator for Belt Conveyor
Product Description
RCDD series is self-unloading type magnet separator in long-term
system. It is added platform, iron removing belt and etc, which is
suspended over the belt conveyer. Through the conveyance of the
iron unloading belt, the separator will auto discarge the iron
magnetic articles which are absorbed by the magnet into the iron
collecting box. Thus removing the iron magnetic articles is gained.
Which is the one of the most common used types of separator.
| Product Name | Manganese Ore Magnetic Separator for Belt Conveyor |
| Series No. | RCDD Series (Self-Discharge Magnetic Separator) |
| Belt Width | 1200mm |
| Hanging Height | 310mm |
| Cold State Power | 4.2KW |
| Rated Voltage | DC-220V |
| Duty Cycle | 100% |
| Weight | 2700KG |
| Cooling Type | Air Cooling Magnetic Separator |
| Composite | Iron core, aluminum coil,Q235 steel plate, motor, belt,carbon
steel,mica sheet,ethoxyline resin,etc. |
| Pakaging of Magnet | fixed iron frame with five-plywoodboard and no need fumigation |
| Lead Time | within 15 work days after deposit cofirmed |
| Payment | T/T, Western Union, LC at sight |
| Warranty | 12 months |
| Notes | 1. Please let us know your belt width, separate material,we can
make different dimension magnet based on your different
requirements.
2. Our MOQ is 1 set. (Different quantity will with different
price.) |
Series No.: RCDD
Keywords: Manganese Ore Magnetic Separator
Application:
RCDD series used for removing iron magnetic articles from thicker bed and granularity of
the materials as ores, coal, hard coke, limestone, spells, etc.
Classification:
--Electromagnetic Type (with control panel)
--Permanent Type (without control panel)
Discharging Type
--Manual Discharge Type (without motor and belt)
--Self-Discharging Type (with motor and belt)
Cooling Type:
--Air Cooling
--Oil Cooling
--Fan Cooling
International Standard model | Standard Erection T(mm) | width of Conveyer belt(mm) | Rated voltage (v) | Cold state Consumption Power(kw) | Weight (kg) | Overall dimension (mm) | Driving Motor capacity (kw) | Corollary control panel |
| A | B | C | D | E | F |
| RCDD-5 | 160 | 500 | 110 | 1.03 | 1074 | 2300 | 1330 | 1100 | 914 | 500 | 520 | 1.5 | SSTM-1.5D1-D |
| RCDD-6 | 170 | 500 | 110 | 1.4 | 1160 | 2400 | 1400 | 1150 | 1068 | 650 | 520 | 1.5 |
| RCDD-6 | 220 | 650 | 110 | 1.8 | 1330 | 2400 | 1250 | 1250 | 1120 | 650 | 555 | 1.5 | SSTM-3.1D1-D |
| RCDD-8 | 250 | 800 | 110 | 2.6 | 1470 | 2750 | 1600 | 1360 | 1270 | 800 | 580 | 2.2 |
| RCDD-8 | 250 | 800 | 110 | 2.9 | 2000 | 2750 | 1770 | 1465 | 1480 | 900 | 625 | 2.2 |
| RCDD-10 | 260 | 1000 | 110 | 2.9 | 2000 | 2900 | 1770 | 1465 | 1480 | 900 | 625 | 2.2 | SSTM6.2D1-D |
| RCDD-12 | 310 | 1200 | 220 | 4.2 | 2700 | 3200 | 2000 | 1590 | 1680 | 1000 | 625 | 4 |
| RCDD-16 | 410 | 1600 | 220 | 8.2 | 6020 | 3800 | 2620 | 1850 | 1990 | 1400 | 725 | 4 | SSTQ-12D1-D |
Company Information
We provide professional service for customers from over 30
countries. And we exported our main products as lifting magnet,
cable reel, magnetic separator to the market as North America,
South America, Europe, Southeast Asia/ Mideast,Africa, Australia
and so on.
We are also looking for clients in different market to agent our
products.Once you have interesting, welcome to contact with us at
your convenient time.
Packaging & Shipping
(fixed iron frame with five-plywoodboard packing to keep Manganese Ore Magnetic Separator with a safety and
long-distance transportation and no need fumigation when clear custom )
In order to provide you with the best quotation at the shortest
time, we need you kindly inform below points to do model selection
:
1.what kind of material need to process separation?
2.does it work with belt? if yes, how about the belt width? belt
speed?
3.how about the handling capacity you require? and the separation
material size?
4.do you need self-discharging type or manual discharge type?
5.rectangular shape or round shape? permanent magnet type or
electromagnet type?
