Overhead Magnetic Separator for Conveyor Belt
Self Cleaning Conveyor Belt Magnetic Separator Series RCDD
Brief Introduction :
RCDD series is self-unloading type magnet separator in long-term system. It is added platform, iron removing belt and etc, which is
suspended over the belt conveyer. Through the conveyance of the
iron unloading belt, the separator will auto discard the iron magnetic articles which are absorbed by the
magnet into the iron collecting box. Thus removing the iron magnetic articles is gained. Which is the
one of the most common used types of separator.
Application:
Most being suitable for removing iron magnetic articles from thicker bed and granularity of the materials as ores, coal, hard
coke, limestone, spells, etc.
Features:
Improving and purifying non-magnetic materials; Recycling Iron
- made of rare earth NdFeB
- high gauss
- energy saving
Technical Data:
| InternationalStandardmodel | StandardErection T(mm) | width of Conveyer belt(mm) | Rated voltage(v) | ColdstateConsumptionPower(kw) | Weight(kg) | Overall dimension (mm) | DrivingMotorcapacity(kw) | Corollary control panel |
| A | B | C | D | E | F |
| RCDD-5 | 160 | 500 | 110 | 1.03 | 1074 | 2300 | 1330 | 1100 | 914 | 500 | 520 | 1.5 | SSTM-1.5D1-D |
| RCDD-6 | 170 | 500 | 110 | 1.4 | 1160 | 2400 | 1400 | 1150 | 1068 | 650 | 520 | 1.5 |
| RCDD-6 | 220 | 650 | 110 | 1.8 | 1330 | 2400 | 1250 | 1250 | 1120 | 650 | 555 | 1.5 | SSTM-3.1D1-D |
| RCDD-8 | 250 | 800 | 110 | 2.6 | 1470 | 2750 | 1600 | 1360 | 1270 | 800 | 580 | 2.2 |
| RCDD-8 | 250 | 800 | 110 | 2.9 | 2000 | 2750 | 1770 | 1465 | 1480 | 900 | 625 | 2.2 |
| RCDD-10 | 260 | 1000 | 110 | 2.9 | 2000 | 2900 | 1770 | 1465 | 1480 | 900 | 625 | 2.2 | SSTM6.2D1-D |
| RCDD-12 | 310 | 1200 | 220 | 4.2 | 2700 | 3200 | 2000 | 1590 | 1680 | 1000 | 625 | 4 |
Overall Dimension Drawing :

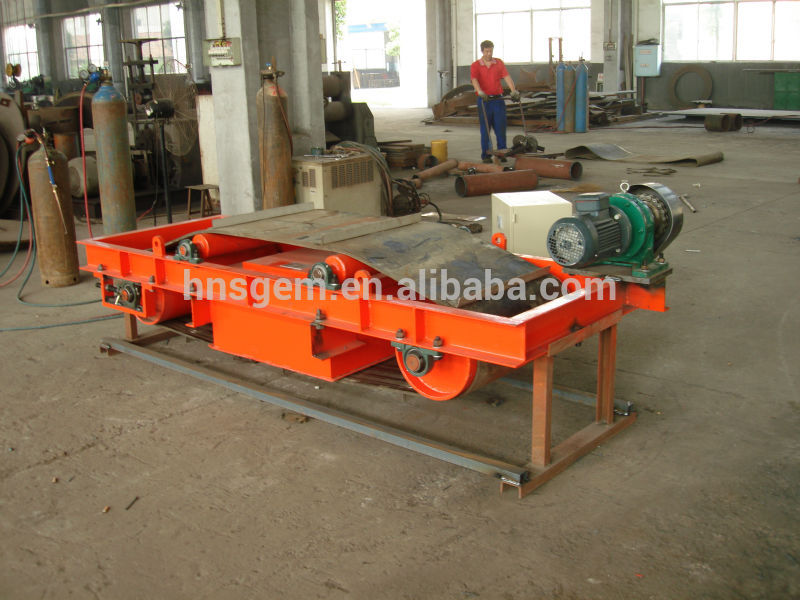

Physical Product Photo:
