--MW5 Series Circular Scrap Lifting Equipment for Crane
Product Description
Main Features:
Adopt totally sealing structure with good property of moisture-proofing
Majorized design by computer with reasonable structure, light dead-weight, strong attraction force and low energy
consumption
The energizing coils are processed by special technology to improve the electrical
property and mechanical property. Heat-resistant grade of
insulating material reaches grade C with long service life
Rated power-on sustaining rate of normal type electromagnet is
increased from 50% to 80%,which improves the efficiency of the electromagnet
High temperature type electromagnet adopts unique method of heat protection, the
temperature of the attached materials is increased from 600 °C to 700 °C, which expands application range of the electromagnet
Simple and convenient installation, operation and maintenance
Benifits:
STRONG ATTRACTION FORCE AND ENERGY SAVING
NORMAL & HIGH TEMPERATURE OPTIONAL
SIMPLE OPERATION AND MAINTENANCE
Application:
MW5 Series lifting magnet is suitable for transporting cast ingot, steel ball and various kinds of steel scraps.
Technical Data:
(Normal temperature type,Rated voltage DC-220v, Duty cycle TD-60%)
Model
Current(A)
Power(KW)
Lifting capability(KG)
Weight(KG)
Dimention(mm)
Steel ball
Steel ignot
Crop end
A
B
C
D
E
MW5-70L/1
15
3.3
2500
380/200
120/100
490
700
800
160
90
30
MW5-80L/1
18
3.96
3000
480/250
150/130
620
800
800
160
90
30
MW5-90L/1
26.6
5.9
4500
650/440
250/200
800
900
1090
200
125
40
MW5-110L/1
35
7.7
6500
1000/800
450/400
1350
1100
1140
220
150
45
MW5-120L/1
45.5
10
7500
1300/1000
600/500
1700
1200
1180
220
150
45
MW5-130L/1
54
12
8500
1400/1100
700/600
2010
1300
1240
250
175
50
MW5-150L/1
71.2
15.6
11000
1900/1500
1100/900
2830
1500
1250
350
210
60
MW5-165L/1
75
16.5
12500
2300/1800
1300/1100
3200
1650
1590
370
230
75
MW5-180L/1
102
22.5
14500
2750/2100
1600/1350
4230
1800
1490
370
230
75
MW5-210L/1
129
28.4
21000
3500/2800
2200/1850
7000
2100
1860
400
250
80
MW5-240L/1
154
33.9
28000
4800/3800
2850/2250
9000
2400
2020
450
280
90
Overall Dimension Drawing:

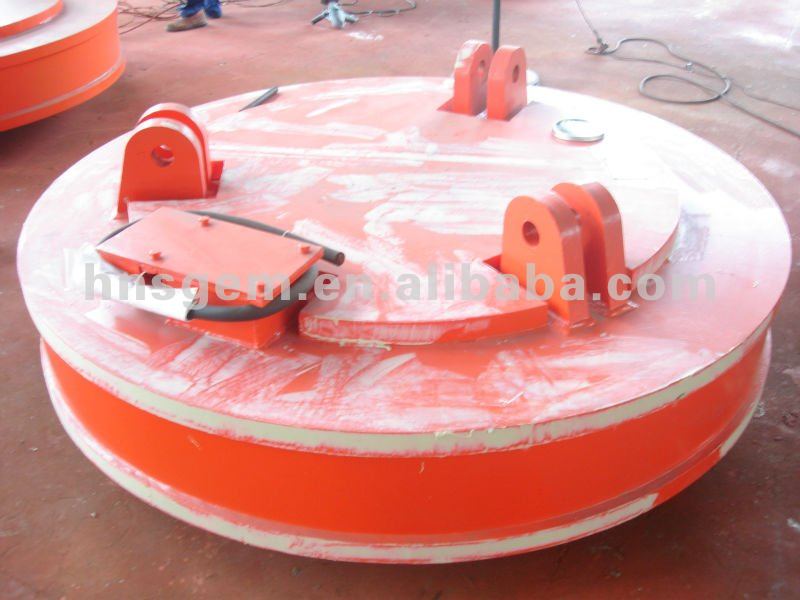

Physical Product Photo:
FAQ
In order to provide you with the best quotation at the shortest
time, we need you kindly inform below points to do model selection
:
1. What kind of the materials you want to lift?Steel scraps /steel billet/ stell ingot / steel plate/ steel bar
/others?
2. What' s the lifting capacity you expect per time?
3. What kind of working site does the magnet work? Indoor or outdoor? how about the working temperature?
4. Kindly provide your power supply information (__V, DC/AC, ___Hz), and information for crane (single beam or double beam, single hook or double hook, how about
the loading capacity).
For our relate products you may interested in, kindly click for
details:
1.Lifting Electromagnet for Excavator Installation
2.Circular Lifting Electromagnet for Steel Scrap Lifting
3.Oval Shape Lifting Electromagnet for Steel Scrap Lifting
4.Self-discharging Electromagnetic Separator
5.Manual Discharging Type Rectangular Electromagnetic Separator
6.Manual Discharging Type Circular Electromagnetic Separator
7.Lifting Electromagnet for Billet Lifting
8.Lifting Electromagnet for Sheet Plate
*Lifting Magnet Series:
--application for transporating steel scraps, steel plates,
billets,etc.
*Cable Reel Series:
--application for supply power to mobile electrical apparatus such
as lifting magnet, all kinds of crane,ect..
Company Information
We are a professionl lifting electromagnet equipment manufacturer
and exporter with more than 15 years export experience. Very sincerely looking for long-term win-win business here!
Major exports include lifting electromagnet, magnetic lifter,
electromagnetic separator, cable reel, control cabinet and magnetic
stirr, etc. .
Our factory also pass the SGS audit per year with certification
issued.
We warmly welcome you to enquiry or visit us, and also appreciate
any of your comments!
We also have our own brand as "SHENGANG"
Packaging & Shipping
(fixed iron frame with five-plywoodboard packing to keep Scrap Electromagnet Lifter with a safety and
long-distance transportation and no needfumigation when clear custom)
Our Services
Quick Response:
We highly appreciate your any enquiry by email, fax or instant message.
We will reply your email or fax within 24 hours.
Please fell free to call us at any time if there is any questions.
Convenient Transportation:
All available shipping ways could be applied, by courier, air or sea.
Appointed shipping company or our own forwarders all could be used in shipment.
Full-way tracking the cargos for you till the goods arrive.
