    SGS Audited Conveyor Belts Magnetic Separator Machine

    Ask Lasest Price
    Brand Name : SHENGANG
    Model Number : RCDF-8 Magnetic Separator
    Certification : based on ISO quality control system
    Supply Ability : 80 Piece/Pieces per Month Magnetic Separator Machine
    Price : Negotiable
    • Product Details
    • Company Profile

    SGS Audited Conveyor Belts Magnetic Separator Machine

    SGS Audited Conveyor Belts Magnetic Separator Machine

    -- Hanging Magnetic Separator for Coal Plant RCDF Series

    --Oil-Cooling Type

    Brief Introduction:

    Series RCDF dry selfcleaning electromagnetic iron separator is a kind of magnetic equipment which

    is using in the iron removal from the nonmagnetic material . It usually be installed in the front or

    center of the belt conveyor. The strong magnetic will absorb the pieces of iron which mixed with

    the materials and dished out by the irondischarging belt, achieving thepurpose of selfcleaning,and

    it can prevent the discharging belt longitudinal crack,and ensure that the breaker and grinder work normally .

    Application:

    This series iron separator is widely used in electricity,mine,metallurgy,building material,coal dressing,

    chemical industry,etc.

    Benifits:

    Improving and purifying non-magnetic materials; Recycling iron

    • made of rare earth NdFeB
    • high gauss
    • energy saving

    Technical Data and Overall Dimension:


    Model

    Belt

    width
    ≤mm

    Suspension height
    h≤mm

    Belt

    speed
    ≤m/s

    depth
    ≤mm

    Excitation power
    ≤Kw

    weight
    Kg

    Dimension mm

    A

    B

    C

    D

    E

    F

    RCDE-5

    500

    150

    2.5

    100

    1.2

    450

    680

    750

    450

    450

    435

    500

    RCDF-5

    1100

    1900

    900

    800

    650

    1050


    RCDE-6

    600

    175

    125

    1.8

    650

    780

    800

    550

    550

    480

    600

    RCDF-6

    1500

    2100

    1000

    850

    700

    1170


    RCDE-6.5

    650

    200

    150

    2.0

    750

    800

    820

    600

    600

    485

    650

    RCDF-6.5

    1800

    2200

    1050

    900

    750

    1270


    RCDE-8

    800

    250

    200

    2.2

    1150

    940

    900

    750

    775

    580

    835

    RCDF-8

    2200

    2650

    1250

    970

    810

    1500


    RCDE-10

    1000

    300

    250

    4.5

    1500

    1200

    980

    950

    1000

    630

    1080

    RCDF-10

    3550

    3000

    1500

    1080

    810

    1580


    RCDE-12

    1200

    350

    300

    6

    2550

    1400

    1080

    1150

    1050

    720

    1150

    RCDF-12

    4650

    3250

    1700

    1200

    940

    1780

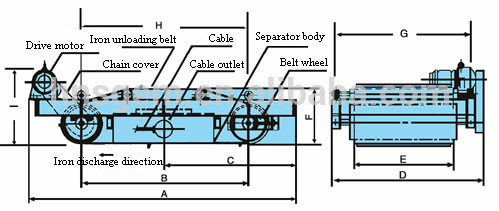

    Overall Dimension Drawing:

    SGS Audited Conveyor Belts Magnetic Separator Machine

    SGS Audited Conveyor Belts Magnetic Separator Machine SGS Audited Conveyor Belts Magnetic Separator Machine

    Physical Product Photot:

    SGS Audited Conveyor Belts Magnetic Separator Machine


    SGS Audited Conveyor Belts Magnetic Separator Machine


    SGS Audited Conveyor Belts Magnetic Separator Machine


    FAQ

    In order to provide you with the best quotation at the shortest time, we need you kindly inform below points to do model selection :

    1.what kind of material need to process separation?


    2.does it work with belt? if yes, how about the belt width? belt speed?


    3.how about the handling capacity you require? and the separation material size?


    4.do you need self-discharging type or manual discharge type?


    5.rectangular shape or round shape? permanent magnet type or electromagnet type?
