Overband Belt Iron Scrap Magnetic Separator
--Self-unloading Permanent Type RCYD Series
Self-discharge permanent-magnet separator series RCYD is energy
economizing type separator equipment using the latest third
generation rare-earth permanent-magnet material NdFeB to form magnetic system which produces strong magnet field attraction.
This product series links up with transferring equipments to form a
complete set to remove the
iron magnetic materials under weight of 0.1-25kg mixed among the non-magnetic materials.
Application:
It can be used for improving the material quality and purification
as well as recovering the magnetic
materials. This product series is widely applied for power industry, metallurgical industry, mining industry,
papermaking industry, building industry, food industry, cement
industry, coal picking-up industry, chemical
industry and so on.
Features:
- High magnetic field intensity, usually used in occasions with
plenty of iron.
- The wholly sealed structure makes the separator water-proof,
dust-proof and corrosion resisting.
- Made of rare earth NdFeB
- High gauss
- Energy saving
- Easy to install and convenient to use.
- High efficiency and stable performance.
- Good operational reliability and flexibility
Technical Data:
(Power-on sustaining rate TD-100%)
| Mode | Usable belt width (mm) | Standard erection height(mm) | Mass(kg) | Overall dimension(mm) | Unload trigger spec. | Driving motor power(kw) |
| A | B | C | D | E |
| RCYD-6 | 650 | 200 | 880 | 2100 | 950 | 420 | 888 | 900 | 2.7 | 2.2 |
| RCYD-8 | 800 | 250 | 1790 | 2050 | 1105 | 650 | 1038 | 1280 | 2.7 | 2.2 |
| RCYD-10 | 1000 | 300 | 3060 | 2240 | 1310 | 785 | 1238 | 1370 | 3.3 | 2.2 |
| RCYD-12 | 1200 | 350 | 4680 | 2440 | 1585 | 875 | 1512 | 1350 | 3.3 | 4 |
| RCYD-14 | 1400 | 400 | 6600 | 2700 | 1765 | 970 | 1690 | 1550 | 4.1 | 4 |
| RCYD-16 | 1600 | 450 | 8060 | 2900 | 1965 | 1050 | 1890 | 1750 | 4.2 | 4 |
| RCYD-18 | 1800 | 500 | 10250 | 3150 | 2230 | 1150 | 2150 | 1960 | 6.8 | 5.5 |
| RCYD-20 | 2000 | 500 | 12850 | 3380 | 2460 | 1280 | 2380 | 2170 | 16 | 5.5 |
Overall Dimension Drawing :

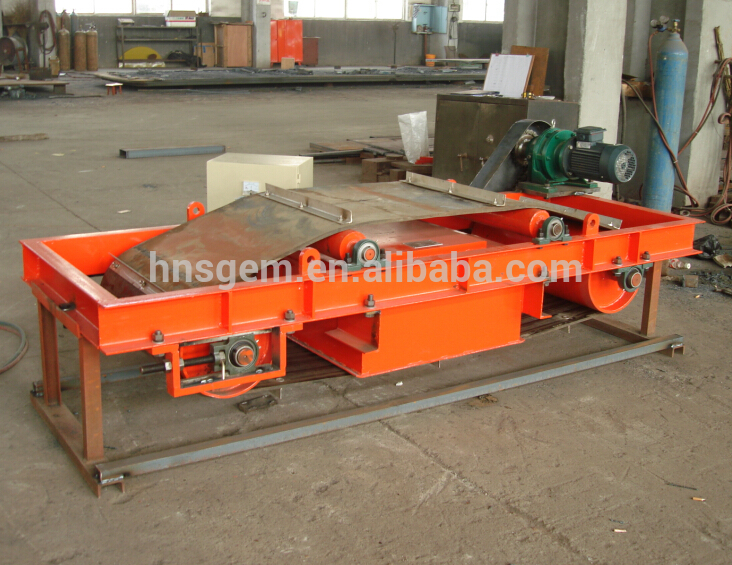

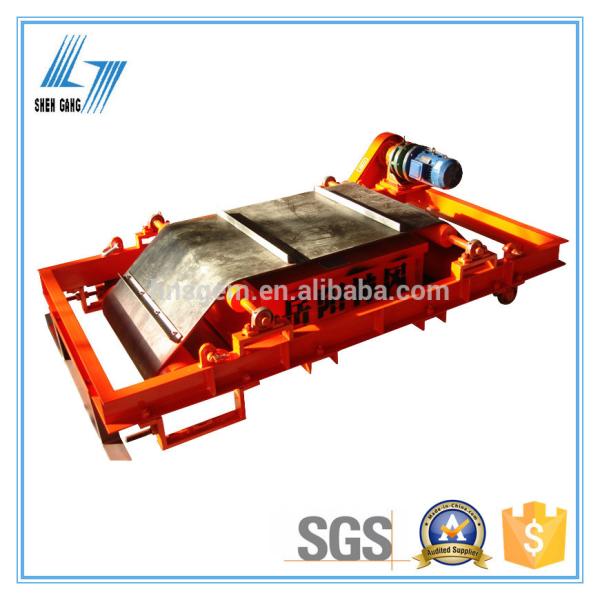

Physical Product Photo:
FAQ
In order to provide you with the best quotation at the shortest
time, we need you kindly inform below points to do model selection
:
1.what kind of material need to process separation?
2.does it work with belt? if yes, how about the belt width? belt speed?
3.how about the handling capacity you require? and the separation material size?
4.do you need self-discharging type or manual discharge type?
5.rectangular shape or round shape? permanent magnet type or electromagnet type?
