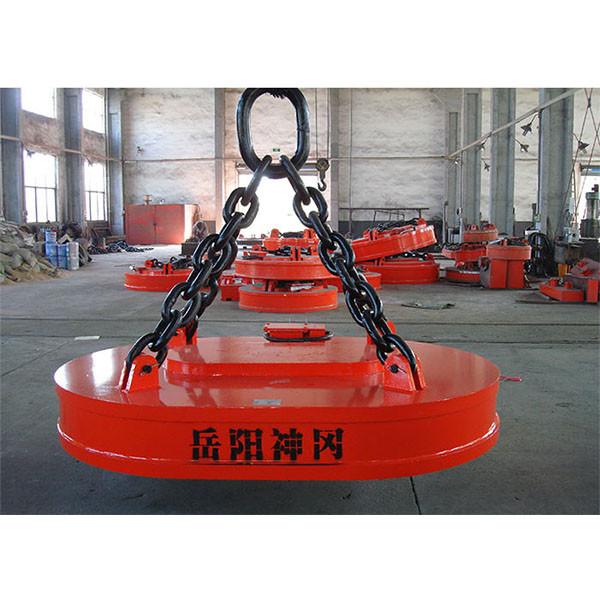

Description:
Oval Shape Magnetic lifter is suitable for lifting steel scraps in
box-shaped cart.Complete set of equipment: Electro magnetic
lifter,Rectification control cabinet, Cable reel, Cable connector
etc.
Features:
1.Oval shape is suitable for using in Carriage shape,efficiently
handle scraps.
2.With deep magnetic field and strong magnetic force,it can handle
substantial scraps at a time.
Benifits:
- STRONG ATTRACTION FORCE AND ENERGY SAVING
- NORMAL & HIGH TEMPERATURE OPTIONAL
- SIMPLE OPERATION AND MAINTENANCE
Main Technical Data:
| Model | Electric current (A) | Cold-state power (kw) | lifting capacity (kg) cold/hot state | Mass (kg) | Overall dimension (mm) |
| cast iron | steel scrap | A | B | C | D | E | F |
| MW61-180160L/1-75 | 113/78 | 32.7/15.5 | 2550/2000 | 1150/900 | 5000 | 1800 | 1600 | 1500 | 310 | 210 | 60 |
| MW61-200150L/1-75 | 110/76 | 31.9/15.2 | 2200/1900 | 1000/800 | 4200 | 2000 | 1500 | 1300 | 250 | 180 | 70 |
| MW61-200180L/1-75 | 142/108 | 41.2/23.8 | 2300/1900 | 1100/900 | 4500 | 2000 | 1800 | 1400 | 400 | 240 | 70 |
| MW61-250150L/1-75 | 198/150 | 57.4/33 | 4000/3000 | 2000/1600 | 5000 | 2500 | 1500 | 1700 | 300 | 210 | 60 |
| MW61-250180L/1-75 | 238/181 | 69.02/39.82 | 4500/3000 | 2200/1600 | 9000 | 2500 | 1800 | 1700 | 180 | 110 | 55 |
| MW61-250200L/1-75 | 179/123 | 51.9/24.5 | 5000/4200 | 2500/1800 | 8400 | 2500 | 2000 | 2000 | 390 | 280 | 80 |
| MW61-300150L/1-75 | 195/135 | 56.6/27 | 2400/2850 | 1500/1250 | 5700 | 3000 | 1500 | 1570 | 310 | 210 | 60 |
| MW61-300180L/1-75 | 198.6/150 | 57.6/33 | 3500/2850 | 1600/1300 | 7500 | 3000 | 1800 | 1570 | 400 | 250 | 80 |
| MW61-300200L/1-75 | 207/157.1 | 60/34.5 | 4000/3500 | 2500/2000 | 10500 | 3000 | 2000 | 1800 | 400 | 250 | 80 |
| MW61-350220L/1-75 | 254.4/193 | 7308/42.5 | 7000/6000 | 3500/3000 | 12000 | 3500 | 2200 | 1955 | 400 | 300 | 80 |
| MW61-360180L/1-75 | 240/180 | 69.6/39.6 | 5000/3500 | 2500/2000 | 11000 | 3600 | 1800 | 1955 | 400 | 250 | 80 |
| MW61-400150L/1-75 | 182/138 | 52.8/30.4 | 4000/3500 | 2500/2000 | 8500 | 4000 | 1500 | 2350 | 410 | 260 | 80 |
Overall Dimension Drawing:

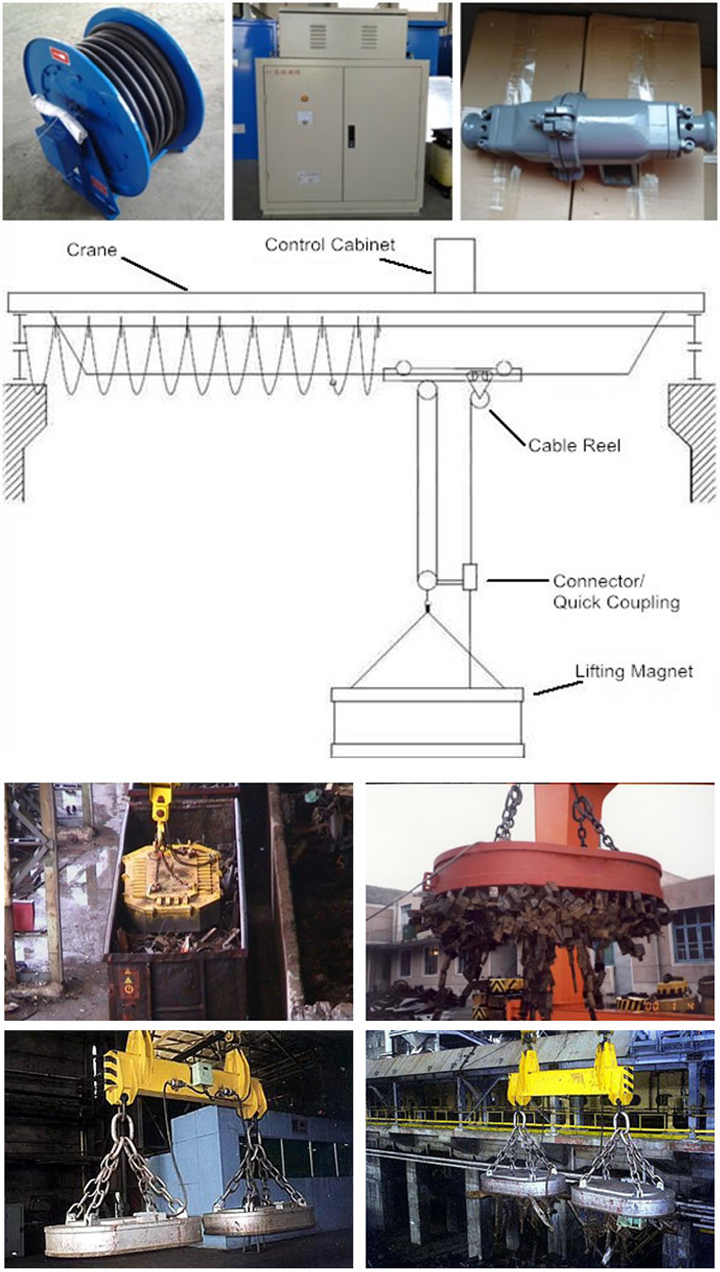

Complete set of Equipment:
· Electric lifting magnet;
· Spring type cable reel with Cable;
· Rectifier control cabinet (Normal type,Strong excitation type,
Battery back-up type);
· Cable connector / Quick coupling.
Production:
Packaging & Shipping
(fixed iron frame with five-plywoodboard packing to keep 300kg
Lifting Electromagnet & Electromagnetic Lifting Device with a
safety and long-distance transportation and no need fumigation when
clear custom )FAQ:
Q: Why customers choose us?
A: We are a professional lifting electromagnet products
manufacturer with 18 years experience in China.We have our own
factory which can offer better price, better control delivery time
based on strict quality inspection and good after-service
guarantee.
Q: Can I have product with our design and nameplate?
A: Of course,we welcome OEM and ODM order. Our engineer will
provide you the proposal based on your detailed requirements.
Q: How long is your delivery time?
A: Standard model is within 12 workdays after deposit confirmed.
Customized model will depend on actual production needs.
Q: What is your warranty and after service?
A: Our product is with 12months warranty from delivery. We also
support
engineer to oversea market. Frankly speaking,with equipment
renovation technology, our products tend to free maintenance.
About Enquiry:
To help you get the best lifting electromagnet for your
application, please kindly provide the following information:
1. What are the materials you want to lift?
Steel scraps,ingot,ball,steel billet, plate, rebas etc. For steel
plate, please let us know its dimension (Length× Width× Thickness
mm)
2. What's the lifting capacity you expect?
3. What kind of working site does the magnet work? Indoor or
outdoor?
4. Kindly provide your power supply information:Voltage(V),
DC/AC,Frequency(Hz), and information for overhead crane: single
beam or double beam, single hook or double hook, how about its
loading capacity?
5.Do you need only magnet or full set equipment with cable reel,
control cabinet and cable connector?
6.Do you prefer FOB or CIF price, which is the destination port?
(More details, please feel free to contact us directly. )
