Crane Electromagnetic Lifting Equipment
Product Description
Main Features:
- Adopt totally sealing structure with good property of moisture-proofing
- Majorized design by computer with reasonable structure, light dead-weight, strong attraction force and low energy
consumption
- The energizing coils are processed by special technology to improve the electrical
property and mechanical property. Heat-resistant grade of
insulating material reaches grade C with long service life
- Rated power-on sustaining rate of normal type electromagnet is
increased from 50% to 80%,which improves the efficiency of the electromagnet
- High temperature type electromagnet adopts unique method of heat protection, the
temperature of the attached materials is increased from 600 °C to 700 °C, which expands application range of the electromagnet
- Simple and convenient installation, operation and maintenance
Benifits:
- STRONG ATTRACTION FORCE AND ENERGY SAVING
- NORMAL & HIGH TEMPERATURE OPTIONAL
- SIMPLE OPERATION AND MAINTENANCE
Application:

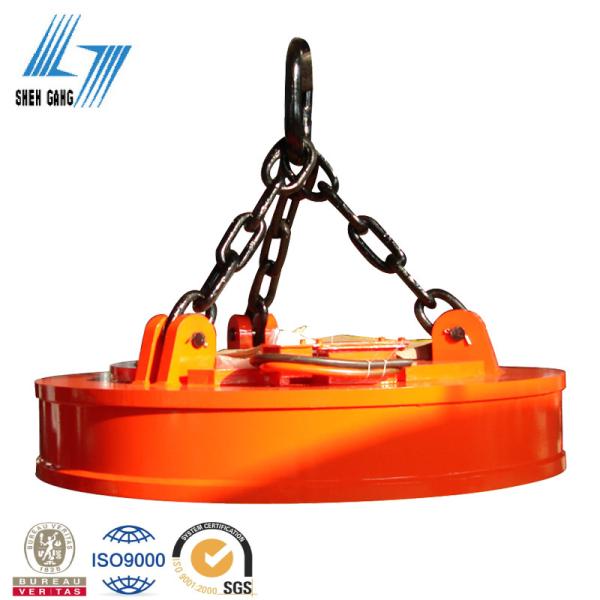

MW5 Series lifting magnet is suitable for transporting cast ingot, steel ball and various kinds of steel scraps.
Technical Data:
(Normal temperature type,Rated voltage DC-220v, Duty cycle TD-60%)
Model | Current(A) | Power(KW) | Lifting capability(KG) | Weight(KG) | Dimention(mm) |
Steel ball | Steel ignot | Crop end | A | B | C | D | E |
MW5-70L/1 | 15 | 3.3 | 2500 | 380/200 | 120/100 | 490 | 700 | 800 | 160 | 90 | 30 |
MW5-80L/1 | 18 | 3.96 | 3000 | 480/250 | 150/130 | 620 | 800 | 800 | 160 | 90 | 30 |
MW5-90L/1 | 26.6 | 5.9 | 4500 | 650/440 | 250/200 | 800 | 900 | 1090 | 200 | 125 | 40 |
MW5-110L/1 | 35 | 7.7 | 6500 | 1000/800 | 450/400 | 1350 | 1100 | 1140 | 220 | 150 | 45 |
MW5-120L/1 | 45.5 | 10 | 7500 | 1300/1000 | 600/500 | 1700 | 1200 | 1180 | 220 | 150 | 45 |
MW5-130L/1 | 54 | 12 | 8500 | 1400/1100 | 700/600 | 2010 | 1300 | 1240 | 250 | 175 | 50 |
MW5-150L/1 | 71.2 | 15.6 | 11000 | 1900/1500 | 1100/900 | 2830 | 1500 | 1250 | 350 | 210 | 60 |
MW5-165L/1 | 75 | 16.5 | 12500 | 2300/1800 | 1300/1100 | 3200 | 1650 | 1590 | 370 | 230 | 75 |
MW5-180L/1 | 102 | 22.5 | 14500 | 2750/2100 | 1600/1350 | 4230 | 1800 | 1490 | 370 | 230 | 75 |
MW5-210L/1 | 129 | 28.4 | 21000 | 3500/2800 | 2200/1850 | 7000 | 2100 | 1860 | 400 | 250 | 80 |
MW5-240L/1 | 154 | 33.9 | 28000 | 4800/3800 | 2850/2250 | 9000 | 2400 | 2020 | 450 | 280 | 90 |

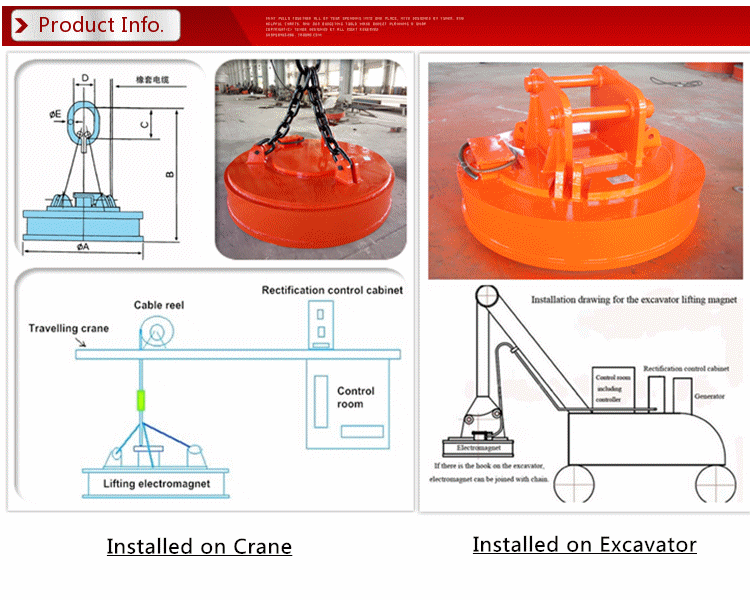

Overall Dimension Drawing:
Company Information
We provide professional service for customers from over 30
countries. And we exported our main products as lifting magnet,
cable reel, magnetic separator to the market as North America,
South America, Europe, Southeast Asia/ Mideast,Africa, Australia
and so on.
We are also looking for clients in different market to agent our
products.Once you have interesting, welcome to contact with us at
your convenient time.
Packaging & Shipping
(fixed iron frame with five-plywoodboard packing to keep Magnetic Separators & Lifting Equipment with a
safety and long-distance transportation and no need fumigation when clear custom )
