    High Quality Torque of The Electric Motor Cable Reel

    High Quality Torque of The Electric Motor Cable Reel


    High Voltage Cable Reel for Moment Motor Powered JDD Series

    Brief Introduction:

    Motor-driven cable reel is designed for coiling or releasing the large specification and long distance power supply cable, which can be in synchronous operation with the mobile electrical apparatus to coil or release the cables. In view of its power patterns which is divided into torque motor driven type and three phase asynchronous motor driven type. There are so many motor-driven reel models available which can coil or release the power supply cables under 500V and high voltage cables for 6kv and 10kv.
    1. For different power cable, such as 3x120+1x35, 3x95+1x35 etc
    2. Its driven by the electric motor
    3. The cable reel is usually fixed on the mobile machine and works horizontally.
    4. Additional turnover anchor will be provided if the power is feed centrally
    5. Additional control cabinet is also equipped.

    Features:

    • for large specification and long distance power supply cable
    • keep in synchronous with the mobile electric apparatus

    Technical Data:

    Overall Dimension:

    Item

    A

    B

    C

    D1

    D2

    d

    E

    F

    H

    I

    K

    W

    Weight kg

    1

    880

    800

    910

    1000

    1600

    26

    1200

    1800

    1370

    100

    110

    250

    960

    2

    880

    800

    910

    1000

    1800

    26

    1200

    1800

    1370

    100

    110

    250

    980

    3

    880

    800

    910

    1000

    2000

    26

    1200

    1800

    1370

    100

    110

    250

    1010

    4

    880

    800

    910

    1200

    2500

    26

    1200

    1800

    1370

    100

    110

    250

    1080

    5

    880

    800

    1000

    1000

    1800

    26

    1300

    1900

    1460

    100

    110

    250

    1150

    6

    880

    800

    1000

    1500

    2500

    26

    1300

    1900

    1460

    100

    110

    250

    1250

    Main Technical Data:

    Cable Model

    Current A

    50m Series

    Item

    100m Series

    Item

    150m Series

    Item

    200m Series

    Item

    Continuously

    1 min on; 1 min off

    UG-6000

    3×16+1×10

    65

    85

    /

    /

    JDD65-100-4G

    2

    JDD65-150-4G

    3

    JDD65-200-4G

    4

    UG-6000

    3×25+1×16

    90

    120

    JDD90-50-4G

    1

    JDD90-100-4G

    2

    JDD90-150-4G

    3

    JDD90-200-4G

    4

    UG-6000

    3×35+1×16

    110

    150

    JDD110-50-4G

    1

    JDD110-100-4G

    2

    JDD110-150-4G

    3

    JDD110-200-4G

    4

    UG-10000

    3×25+1×16

    90

    120

    /

    /

    JDD90-100-4GG

    5

    /

    /

    JDD90-200-4GG

    6


    Remark:

    1. Cable is provided by customers

    2. If choosing flat cables, please remark this when place the order

    3. G stands for 6KV high voltage cable reel. GG stands for 10KV voltage cable reel.

    Overall Dimension Drawing:

    High Quality Torque of The Electric Motor Cable Reel

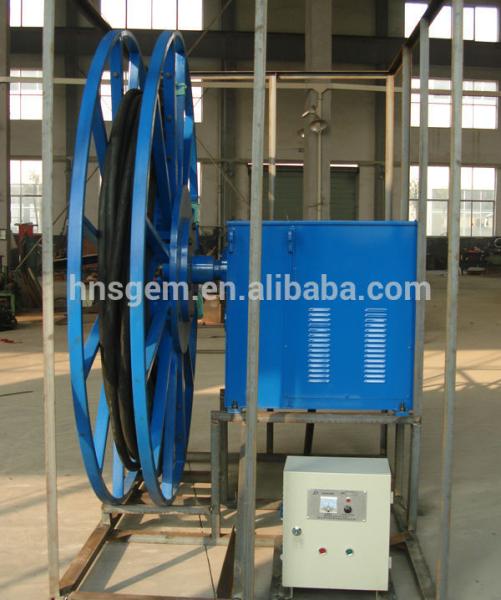

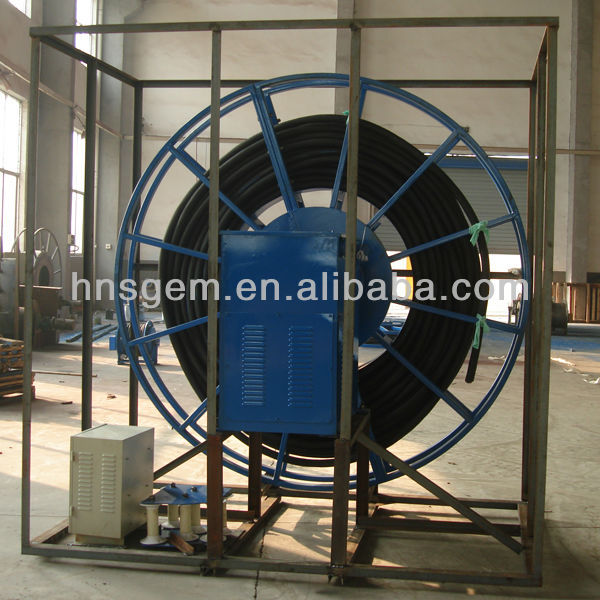

    Physical Product Photo:

    High Quality Torque of The Electric Motor Cable Reel

    High Quality Torque of The Electric Motor Cable Reel


    High Quality Torque of The Electric Motor Cable Reel


    *Cable Reel Series:

    --application for supply power to mobile electrical apparatus such as lifting magnet, all kinds of crane,ect..

    High Quality Torque of The Electric Motor Cable Reel

    High Quality Torque of The Electric Motor Cable Reel

    High Quality Torque of The Electric Motor Cable ReelHigh Quality Torque of The Electric Motor Cable Reel

    High Quality Torque of The Electric Motor Cable Reel

    High Quality Torque of The Electric Motor Cable Reel

    (fixed iron frame with five-plywoodboard packing to keep safety and long-distance transportation)
