    ---Hysteresis Cable Reel JCD Series


    Product Description

    Brief Description:

    Magnetic hysteresis type cable drum realizes coiling up and spooling off cables through transmitting the torque of motor in magnetic field. Adopt records of difference ring device, it can be in synchronous operation with the mobile electric apparatus to coil up or spool off the cables. It features compact, small structure, invariable of tension, widely used in supply power of the electric apparatus on large-scale mobile devices.


    Model Designation:


    Cable drum category

    L0

    H0

    H1

    B1

    B2

    A

    Mounting rack

    For power force

    (380v)

    633

    1205

    325

    420

    480

    583

    Unused

    For power force

    (380v)

    922

    1346

    461

    636

    682

    837

    Unused

    For power force

    (6000v)

    1025

    1346

    432

    685

    745

    850

    Use

    For power force

    (10000v)

    1228

    1346

    466

    698

    745

    896

    Use

    For control

    14rings

    633

    1205

    466

    420

    480

    583

    Unused

    24rings

    753

    37rings

    970

    1346

    466

    420

    480

    747

    Use

    48rings

    1100


    Overall Dimension Drawing: High Quality Cable Reel Hysteresis Type


    3.

    A. It is the structure in bulk that each coiler bar is greater than 2500, users refer to assembling and installing drawing by oneself, it is the whole structure that be less than or equal to 2500.

    B. Parameters and cable capacity refer to spool of data long-timely hindered rotation motor.


    4 . The category of the electrical collector.


    Number 1 electrical collector' s single current is less than 150A, Number 2 electrical collector's single current is less than 400A, Number 3 electrical collector is kind of high voltage slip ring group with current is great than 400A, Number 4 electrical collector's single current is less than 30A.


    5. The connection method of cable


    A. Number 1, 4 collector slip ring group have lead wire which the incoming cable connects with the connecting end of the spool.

    B. Number 2, 3 collector slip ring group is without lead wire cable connects with slip ring directly.


    6. Quantity selection of driver:


    A. Total torque that the cable needs.


    P=W*h*D/μ

    w: Cable unit weight N

    h: The height from spool center to

    D: Cable capacity' diameter of spool

    μ: working efficiency u=0.85


    B. Driver number

    n>Adopt 2 thread

    n>Adopt 3 thread analogize sequentially

    7. User provide below data after model selection


    (1).cable specification and contour size;

    (2).cable length (including reserve coil number)

    (3). winding arranged single row or multi-row.

    (4). the installation height of the cable drum.

    (5). whether taking cable rack for setting cable.

    (6).whether taking restricted position of protection.


    Physical Product Photo:

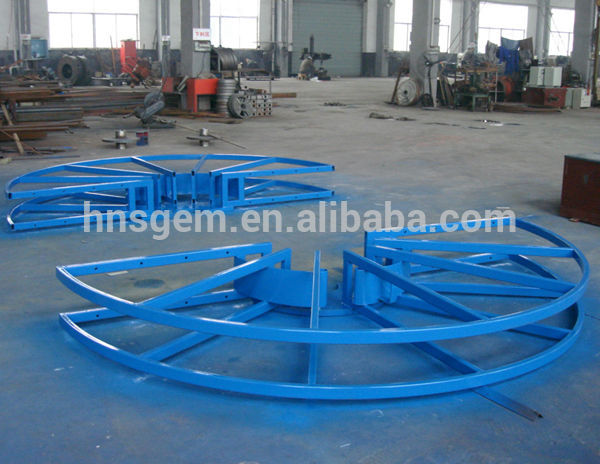

    Design I:

    High Quality Cable Reel Hysteresis Type


    High Quality Cable Reel Hysteresis Type


    High Quality Cable Reel Hysteresis Type

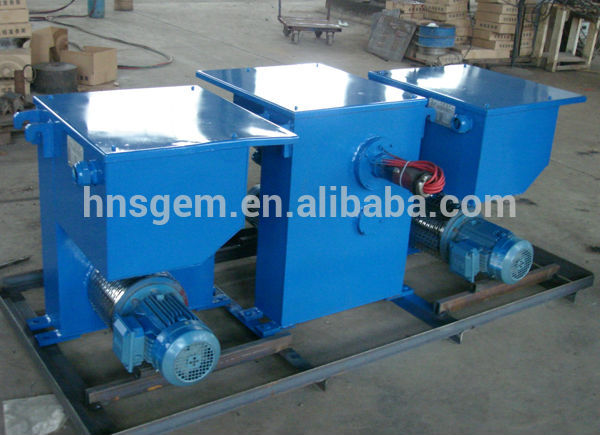

    Design II (Box-Type with Easy Maintenace for Gear Part):
