We have being design and manufacture the power supply cable reel
withadvanced technology and excellent performanceto meet with the requirement ofsupplying powerto the mobile electrical apparatus such as lifting electromagnet,
electric powered flat bed trailer,all kinds of cranes, electrical
powered grab buckets,etc.. According to the driving source ofspooling off the cable, this reel has two types available as:Spring Type & Electrical Powered Type.
Features:
Using spiral springs as power without electric energy consumption to keep reliable in operation
Using collector slip spring carbon brush bracket to transfer the electric energy steadily and continuously
Equipped reversible unit to avoid the reel counter-- rotating to breakthe springs
Power supply easily, safety and reliability in operation, correct
strs on the cables
Elastic power supply cable reel series JT is a kind of automatic cable reel driven by the spiral springs which adopted the imported international universal technology of
spiral power spring exploiting energy storage of itself. There are
three different types of product available for the customers: slip ring built-in type with compact and pretty contour; slip ring exterior installed type in convenience of service; over hanging type which can coil up much longer cables.
Benifits:
Easy installation and start of operation
Corrosion and water proof
Silver brush would prevent and reduce the noise by conductors
friction
Technical Data:
Series
item
A
B
C
D1
D2
d
E
F
W
Weight(kg)
15m,20m Series
1
300
360
400
500
700
15
440
600
250
95
2
490
650
300
100
3
560
720
250
115
4
610
770
300
120
5
720
880
300
150
Cable Model
Enabled Current
15m Series
item
20m Series
item
25m Series
item
Core No.*Cross Section
Continuously
1 min on/off
YC2*10
58
75
JTA75-15-2
1
JTA75-20-2
1
JTA75-25-2
2
JTB75-15-2
JTB75-20-2
JTB75-25-2
YC2*16
77
100
JTA100-15-2
1
JTA100-20-2
3
JTA100-25-2
2
JTB100-15-2
JTB100-20-2
JTB100-25-2
YC2*25
106
135
JTA135-15-2
4
JTA135-20-2
4
JTA135-25-2
3
JTB135-15-2
JTB135-20-2
JTB135-25-2
YC3*10+1*6
50
65
JTA65-15-4
2
JTA65-20-4
4
JTA65-25-4
2
JTB65-15-4
JTB65-20-4
JTB65-25-4
Overall Dimension Drawing:
FAQ
In order to provide you with the best quotation at the shortest
time, we need you kindly inform below points to do model selection
:
1.Do you have special requirement about the power types?
spring type / motor powered/hysteresis?
2.What is the cable specification?
cable core number and cross section, coil length of cable, electric
current)?
3. What kind of mobile equipment will the cable reel be applied with?
lifting magnet, crane or others
4. What kind of installation patterns you prefer?
Vertical coiling or Horizontal coiling?
For our relate products you may interested in, kindly click for
details:
1.JTA SeriesSpring Driven Cable Reel
2.JT Series Hose Reel
3.Motor Type Cable Reel
4.Hyster Type Cable Reel
5.Motorized Couple Type Cable Reel
6.Magnetic Coupling Type Cable Reel
*Lifting Magnet Series:
--application for transporating steel scraps, steel plates,
billets,etc.
*Cable Reel Series:
--application for supply power to mobile electrical apparatus such
as lifting magnet, all kinds of crane,ect..
Company Information
We are a professionl lifting electromagnet equipment manufacturer
and exporter with more than 15 years export experience. Very sincerely looking for long-term win-win business here!
Major exports include lifting electromagnet, magnetic lifter,
electromagnetic separator, cable reel, control cabinet and magnetic
stirr, etc.
Our factory also pass the SGS audit per year with certification
issued.
We warmly welcome you to enquiry or visit us, and also appreciate
any of your comments!
We also have our own brand as "SHENGANG"

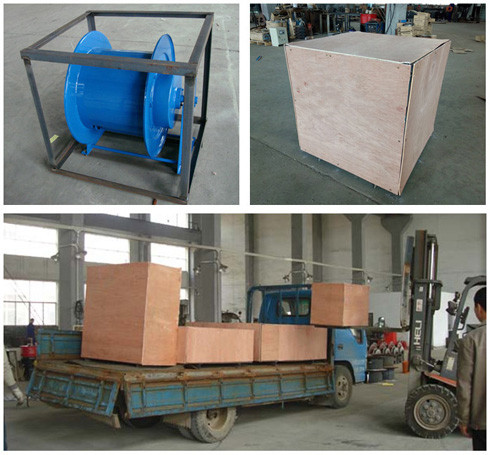

Packaging & Shipping
