Magnetic Separator for Iron Ore
Industrial Equipment for Mining Separation Series RCDD
Brief Introduction :
RCDD series is self-unloading type magnet separator in long-term system. It is added platform, iron removing belt and etc, which is
suspended over the belt conveyer. Through the conveyance of the
iron unloading belt, the separator will auto discard the iron magnetic articles which are absorbed by the
magnet into the iron collecting box. Thus removing the iron magnetic articles is gained. Which is the
one of the most common used types of separator.
Application:
Most being suitable for removing iron magnetic articles from thicker bed and granularity of the materials as ores, coal, hard
coke, limestone, spells, etc.
Features:
Improving and purifying non-magnetic materials; Recycling Iron
- made of rare earth NdFeB
- high gauss
- energy saving
Technical Data:
Model | Standard Erection T(mm) | width of Conveyer belt(mm) | Rated voltage (v) | Cold state Consumption Power(kw) | Weight (kg) | Overall dimension (mm) | Driving Motor capacity (kw) | Corollary control panel |
| A | B | C | D | E | F |
| RCDD-5 | 160 | 500 | 110 | 1.03 | 1074 | 2300 | 1330 | 1100 | 914 | 500 | 520 | 1.5 | SSTM-1.5D1-D |
| RCDD-6 | 170 | 500 | 110 | 1.4 | 1160 | 2400 | 1400 | 1150 | 1068 | 650 | 520 | 1.5 |
| RCDD-6 | 220 | 650 | 110 | 1.8 | 1330 | 2400 | 1250 | 1250 | 1120 | 650 | 555 | 1.5 | SSTM-3.1D1-D |
| RCDD-8 | 250 | 800 | 110 | 2.6 | 1470 | 2750 | 1600 | 1360 | 1270 | 800 | 580 | 2.2 |
| RCDD-8 | 250 | 800 | 110 | 2.9 | 2000 | 2750 | 1770 | 1465 | 1480 | 900 | 625 | 2.2 |
| RCDD-10 | 260 | 1000 | 110 | 2.9 | 2000 | 2900 | 1770 | 1465 | 1480 | 900 | 625 | 2.2 | SSTM6.2D1-D |
| RCDD-12 | 310 | 1200 | 220 | 4.2 | 2700 | 3200 | 2000 | 1590 | 1680 | 1000 | 625 | 4 |
| RCDD-16 | 410 | 1600 | 220 | 8.2 | 6020 | 3800 | 2620 | 1850 | 1990 | 1400 | 725 | 4 | SSTQ-12D1-D |
Overall Dimension Drawing :

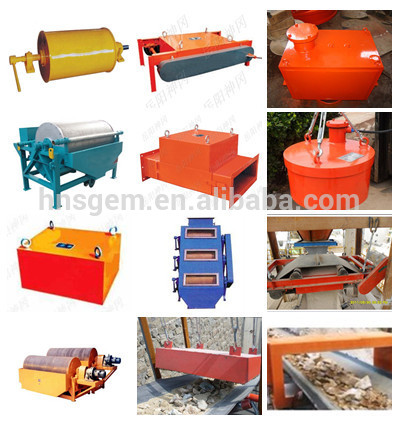

Physical Product Photo:
*Lifting Magnet Series:
--application for transporating steel scraps, steel plates,
billets,etc.
*Cable Reel Series:
--application for supply power to mobile electrical apparatus such
as lifting magnet, all kinds of crane,ect..
*Magnetic Seprator Series:
--application for separating the magnetic material from non-magneic
material in metallurgical ,mining,power,seaport,ceramic
industry,etc.
We are a professionl lifting electromagnet equipment manufacturer
and exporter. Very sincerely looking for long-term win-win business
here!
Major exports include lifting electromagnet, magnetic lifter,
electromagnetic separator, cable reel, control cabinet and magnetic
stirr, etc.
We warmly welcome you to enquiry us, and also appreciate any of
your comments!
(fixed iron frame with five polywoodboard packing to keep safety
long-distance transportation)
